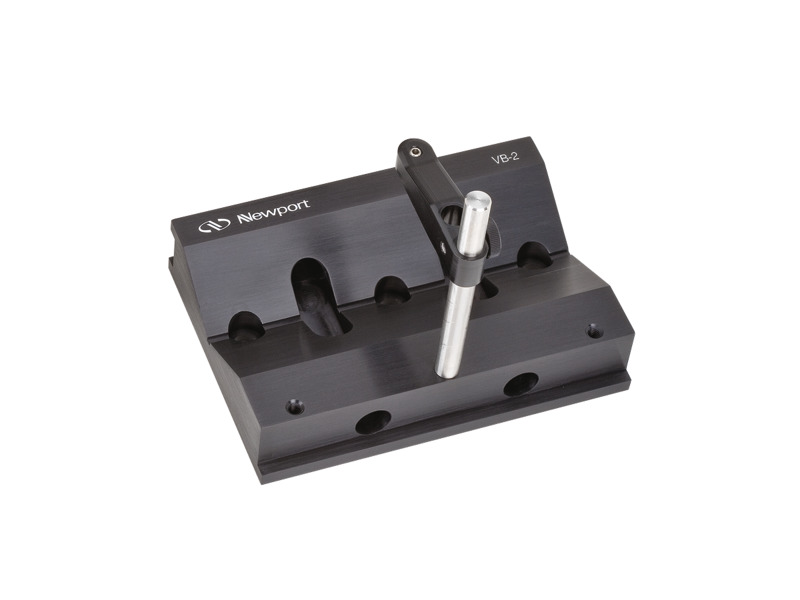

VB-2 Cylindrical Device Mount

Cylindrical Device Mount, V-Block, 5 in. Length

Model: VB-2

$128.00

Show

Compare

Add to List

Product Series Overview

V-Block Cylindrical Device Mounts

The VB-2 5 inch V-Block is designed to hold larger objects. Each block comes with one clamping arm that can be removed and repositioned by accessing one of the threaded holes along the base. Additional clamping arms are sold separately.These two blocks are designed to offer a variety of mounting options. Accessing the counterbored 1/4-20 (M6) holes, they can be attached directly to tables, tip/tilt stages, translation stages or post mounted. There are also holes along the side of the base for direct mounting to 340-RC and 370-RC Rod Clamps.

Specifications

Technical Specs

Type

127 mm V-Block Mount
Diameter

12.7-76.2 mm
Adjustment Type

Fixed

Use

Table or Stage Mounting

Type

127 mm V-Block Mount
Diameter

12.7-76.2 mm
Adjustment Type

Fixed

Use

Table or Stage Mounting

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

VB-2-254 (186.4 kB, PDF)

Other

VB-2 RoHS Certificate (278.7 kB, PDF)
VB-2_RoHS2021.pdf (682.7 kB, PDF)

Related Products

Customers Who Bought This Item Also Bought

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		VB-2C Clamping Post, Spare, VB-2	UNIVERSAL		Show	$41.00

Similar

Description	Compatibility	Avail.	Price
CT26.44BM Cylindrical Laser Mount, 1.73 in. (44 mm), BM micrometers	UNIVERSAL	Show	$1,481.00
VB-0.5 Cylindrical Device Mount, V-Block, 0.5 in. Length	UNIVERSAL	Show	$66.00
VB-1 Cylindrical Device Mount, V-Block, 3 inch (76.2 mm) Length	UNIVERSAL	Show	$48.00
