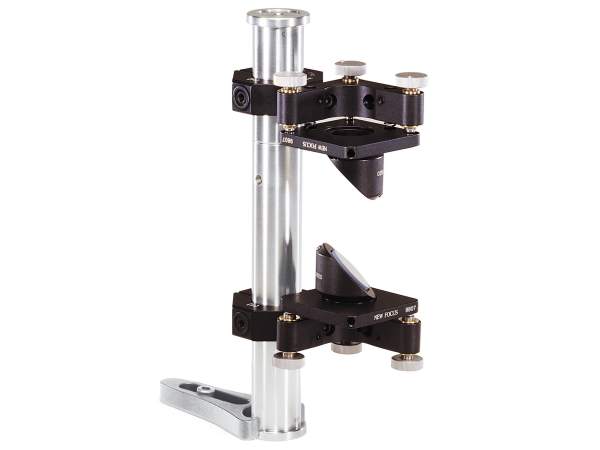

Beamsplitting periscope kits provide the necessary components to fully assemble periscope system to fit your specific mirrors and system requirements. These kits are available with various mounting options for mirrors to provide the optimal steering sensitivity for any system using 1 in. optics.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
9151-M Pedestal Periscope Kit, 255 mm Height, 25.4 mm Mirrors, Metric |
|
$622.00 |
|
|||
|
|
9151NF Pedestal Periscope Kit, 10.1 in. Height, 1 in. Mirrors, English |
|
$622.00 |
|
|||
|
9173 Pedestal Periscope Kit, Valu, 10.6 in. Height, 1 in. Mirrors, English | $510.00 |
|
||||
|
|
9173-M Pedestal Periscope Kit, Valu, 270 mm Height, 25.4 mm Mirrors, Metric | $510.00 |
|

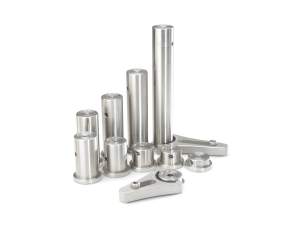

Each periscope kit houses two 1 inch reflecting surfaces, sold separately, to alter a beam path horizontally, either raising or lowering of the beam axis height, and includes all of the following: two 6 in. tall optical pedestals for sturdy mounting, two of our pedestal clamps to adjust mirror height, two Space-Saving Mirror Mounts, two 45° adapters, and a clamping fork.

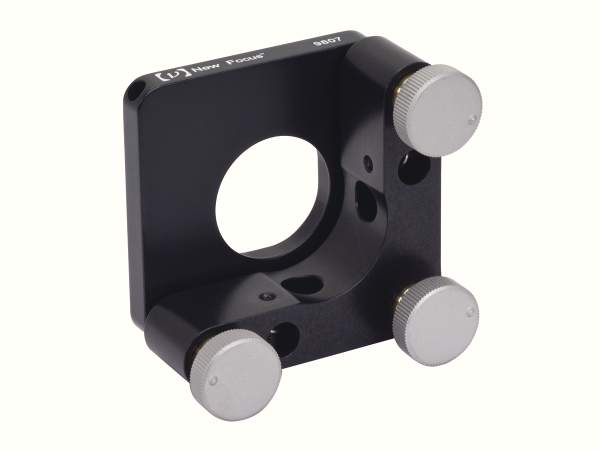

The included mirror mounts feature our proprietary precision knob actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames, ensuring superior stability and precise repeatable adjustment. 3-axis adjustment provides both fine angular and height adjustment.
