Compare Model Drawings, CAD & Specs Wavelength Range Diameter Thickness Surface Quality Availability Price
05D20DM.10
$76.00
05D20DM.10 1030-1090 nm 12.7 mm 3.1 mm 15-5 scratch-dig $76.00
05D20DM.11
$76.00
05D20DM.11 532 nm 12.7 mm 3.1 mm 15-5 scratch-dig $76.00
05D20DM.4
$81.00
05D20DM.4 632.8 nm 12.7 mm 3.1 mm 15-5 scratch-dig $81.00
05D20DM.5
$92.00
05D20DM.5 488-514.5 nm 12.7 mm 3.1 mm 15-5 scratch-dig $92.00
05D20DM.6
$100.00
05D20DM.6 441.6 nm 12.7 mm 3.1 mm 15-5 scratch-dig $100.00
05D20DM.8
$98.00
05D20DM.8 1520-1580 nm 12.7 mm 3.1 mm 15-5 scratch-dig $98.00
07D20DM.10
$100.00
07D20DM.10 1030-1090 nm 19.05 mm 4.57 mm 15-5 scratch-dig $100.00
07D20DM.11
$119.00
07D20DM.11 532 nm 19.05 mm 4.57 mm 15-5 scratch-dig $119.00
07D20DM.4
$119.00
07D20DM.4 632.8 nm 19.05 mm 4.57 mm 15-5 scratch-dig $119.00
07D20DM.5
$119.00
07D20DM.5 488-514.5 nm 19.05 mm 4.57 mm 15-5 scratch-dig $119.00
07D20DM.6
$153.00
07D20DM.6 441.6 nm 19.05 mm 4.57 mm 15-5 scratch-dig $153.00
07D20DM.8
$128.00
07D20DM.8 1520-1580 nm 19.05 mm 4.57 mm 15-5 scratch-dig $128.00
10D20DM.10
$112.00
10D20DM.10 1030-1090 nm 25.4 mm 6.0 mm 15-5 scratch-dig $112.00
10D20DM.11
$105.00
10D20DM.11 532 nm 25.4 mm 6.0 mm 15-5 scratch-dig $105.00
10D20DM.4
$124.00
10D20DM.4 632.8 nm 25.4 mm 6.0 mm 15-5 scratch-dig $124.00
10D20DM.5
$124.00
10D20DM.5 488-514.5 nm 25.4 mm 6.0 mm 15-5 scratch-dig $124.00
10D20DM.6
$158.00
10D20DM.6 441.6 nm 25.4 mm 6.0 mm 15-5 scratch-dig $158.00
10D20DM.8
$148.00
10D20DM.8 1520-1580 nm 25.4 mm 6.0 mm 15-5 scratch-dig $148.00
10D20RM.2
$209.00
10D20RM.2 325 nm 25.4 mm 6.0 mm 15-5 scratch-dig $209.00
20D20DM.10
$296.00
20D20DM.10 1030-1090 nm 50.8 mm 12.7 mm 15-5 scratch-dig $296.00
20D20DM.11
$296.00
20D20DM.11 532 nm 50.8 mm 12.7 mm 15-5 scratch-dig $296.00
20D20DM.4
$296.00
20D20DM.4 632.8 nm 50.8 mm 12.7 mm 15-5 scratch-dig $296.00
20D20DM.6
$296.00
20D20DM.6 441.6 nm 50.8 mm 12.7 mm 15-5 scratch-dig $296.00
20D20DM.8
$366.00
20D20DM.8 1520-1580 nm 50.8 mm 12.7 mm 15-5 scratch-dig $366.00
3MD20DM.10
$180.00
3MD20DM.10 1030-1090 nm 30.0 mm 6.0 mm 15-5 scratch-dig $180.00
3MD20DM.11
$171.00
3MD20DM.11 532 nm 30.0 mm 6.0 mm 15-5 scratch-dig $171.00
3MD20DM.4
$180.00
3MD20DM.4 632.8 nm 30.0 mm 6.0 mm 15-5 scratch-dig $180.00
3MD20DM.5
$171.00
3MD20DM.5 488-514.5 nm 30.0 mm 6.0 mm 15-5 scratch-dig $171.00

For elliptical Borofloat 33 laser line dielectric mirrors, click here

Specifications

  • Wavelength Range
    325 nm, 441.6 nm, 488-514.5 nm, 532 nm, 632.8 nm, 1030-1090 nm, 1520-1580 nm
  • Mirror Shape
    Round
  • Diameter
    12.7 mm, 19.05 mm, 25.4 mm, 30.0 mm, 50.8 mm, 152.4 mm
  • Material
    Borofloat 33
  • Surface Quality
    15-5 scratch-dig, 20-10 scratch-dig
  • Surface Flatness
    λ/10 at 632.8 nm
  • Angle of Incidence
    0-45°
  • Clear Aperture
    ≥central 80% of diameter
  • Thickness
    3.1 mm, 4.57 mm, 6.0 mm, 12.7 mm, 23.5 mm
  • Chamfers Angle Tolerance
    45° ±15°
  • Cleaning
    See How to Clean Optics

Features

Borofloat® 33 Substrates

Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.

632.8 nm HeNe Laser Line Coating

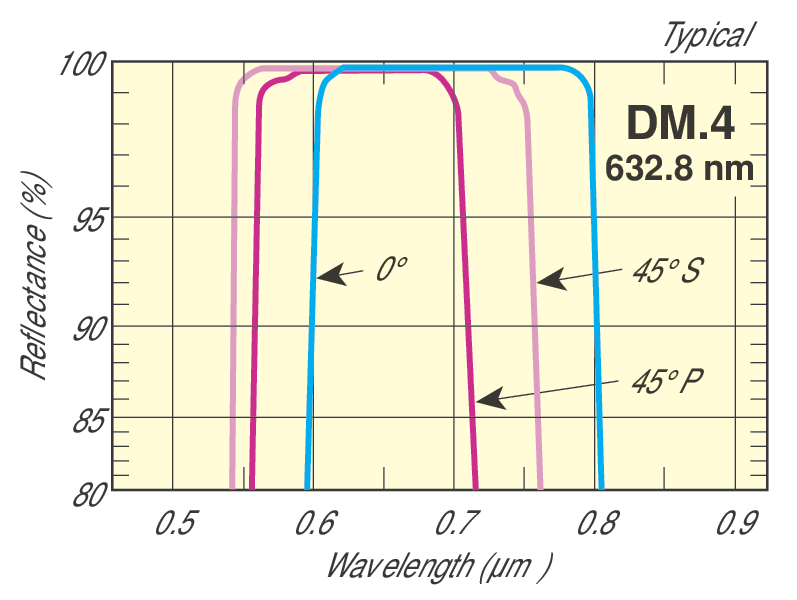

Our DM.4 multilayer dielectric coating is optimized for 632.8 nm HeNe laser line applications. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.

488/514.5 nm Argon-Ion Laser Line Coating

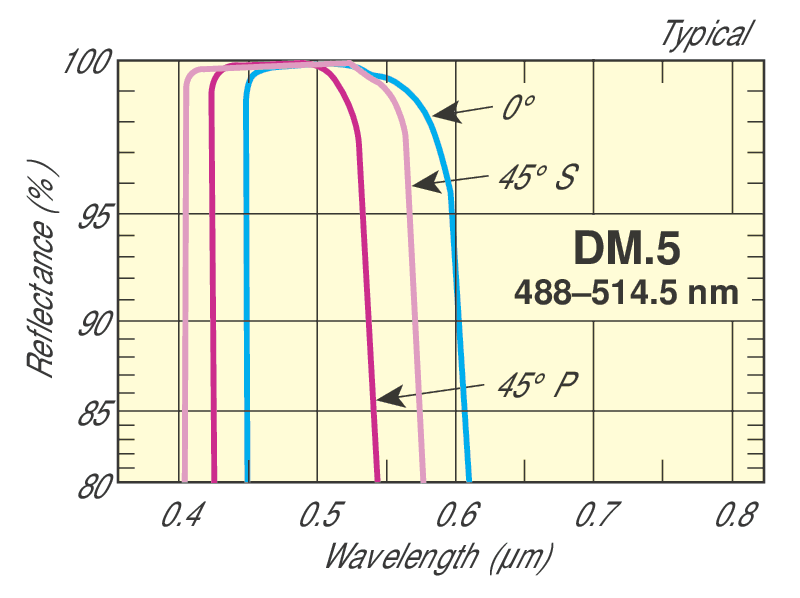

Our DM.5 multilayer dielectric coating is optimized for the 488 nm and 514.5 nm Argon-Ion laser lines. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.

1550 nm Diode Laser Line Coating

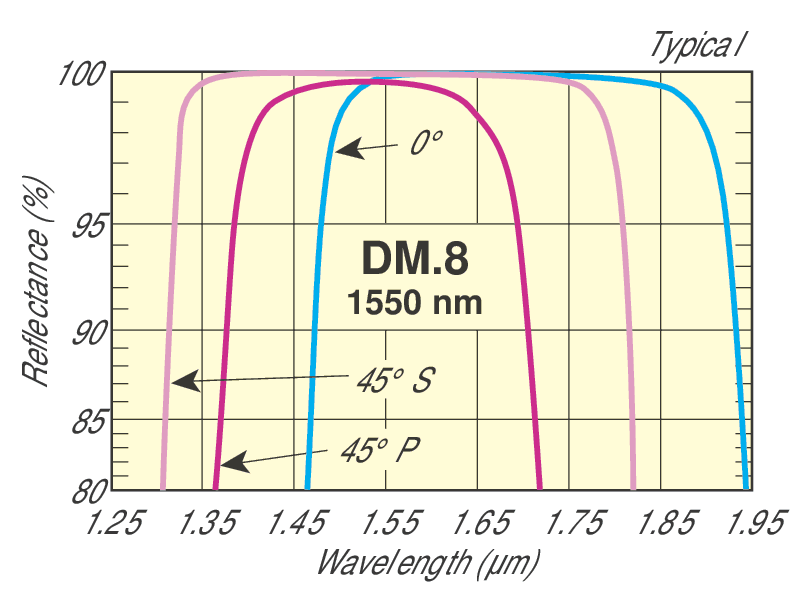

Our DM.8 multilayer dielectric coating is optimized for diode lasers operating in the 1520-1580 nm range. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.

Nd:YAG Laser Line Coatings

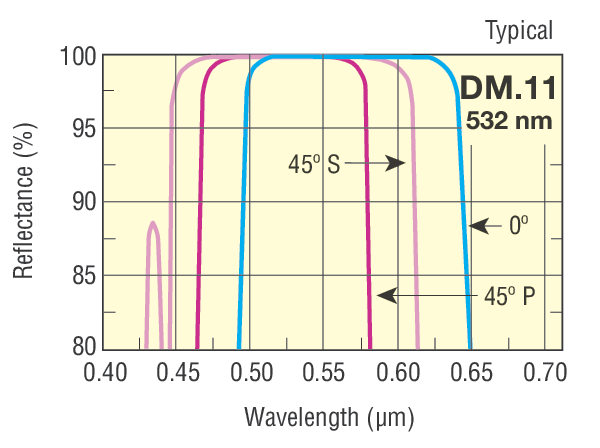

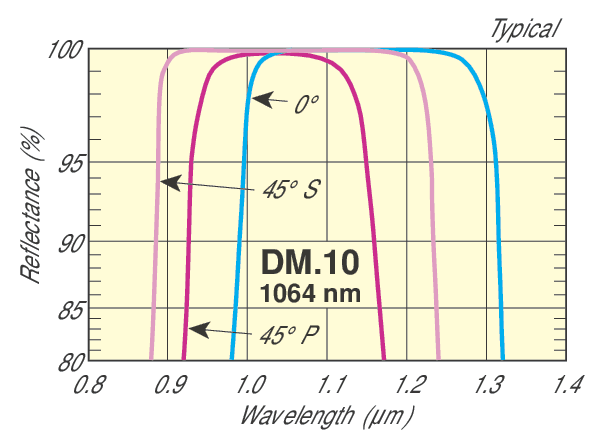

Our DM.10 multilayer dielectric coating is optimized for the 1064 nm fundamental harmonic Nd:YAG laser line. Our DM.11 multilayer dielectric coating is optimized for the 2nd harmonic 532 nm Nd:YAG laser line. They offer greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.

HeCd Laser Line Coatings

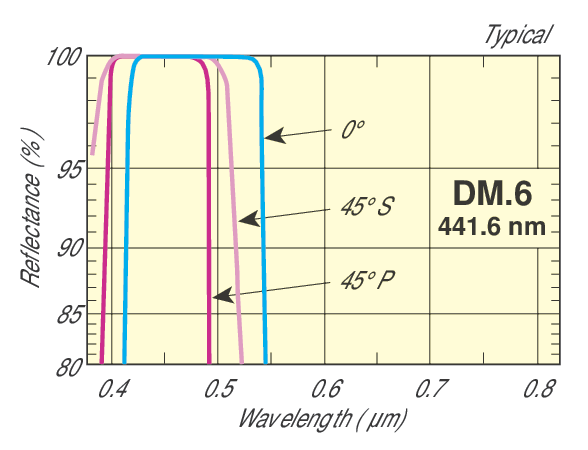

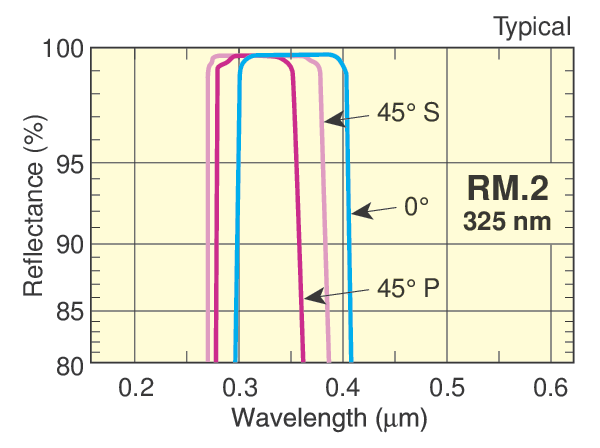

Our RM.2 multilayer dielectric coating is optimized for the 325 nm HeCd laser line. Our DM.6 multilayer dielectric coating is optimized for the 441.6 nm HeCd laser line. They offer greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.
