Compare Model Drawings, CAD & Specs Diameter Antireflection Coating Availability Price
05QW20-1
$170
05QW20-1 12.5 mm 1064 nm $170
05QW20-2
$170
05QW20-2 12.5 mm 532 nm $170
05QW20-3
$180
05QW20-3 12.5 mm 355 nm $180
05QW20-4
$186
05QW20-4 12.5 mm 266 nm $186
10QW20-1
$216
10QW20-1 25.0 mm 1064 nm $216
10QW20-2
$216
10QW20-2 25.0 mm 532 nm $216
10QW20-3
$216
10QW20-3 25.0 mm 355 nm $216
10QW20-4
$219
10QW20-4 25.0 mm 266 nm $219
20QW20-1
$340
20QW20-1 50.0 mm 1064 nm $340
20QW20-2
$340
20QW20-2 50.0 mm 532 nm $340
20QW20-3
$357
20QW20-3 50.0 mm 355 nm $357
20QW20-4
$366
20QW20-4 50.0 mm 266 nm $366

Specifications

  • Material
    Excimer Grade UV Fused Silica
  • Surface Flatness
    λ/10 @ 632.8 nm
  • Surface Quality
    10-5 scratch-dig
  • Thickness
    3.0 mm
  • Thickness Tolerance
    ±0.10 mm
  • Wavefront Distortion
    λ/20 @ 632.8 nm, transmitted
  • Parallelism
    5 arc seconds
  • Cleaning
    See How to Clean Optics
  • Clear Aperture
    Central 90% of diameter
  • Diameter Tolerance
    +0/-0.10 mm
  • Angle of Incidence
    0°

Features

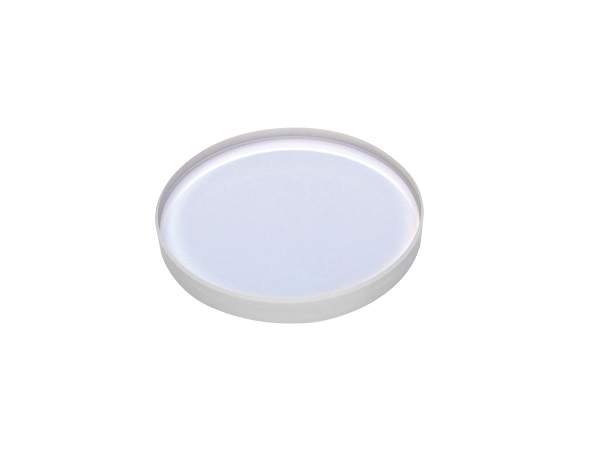

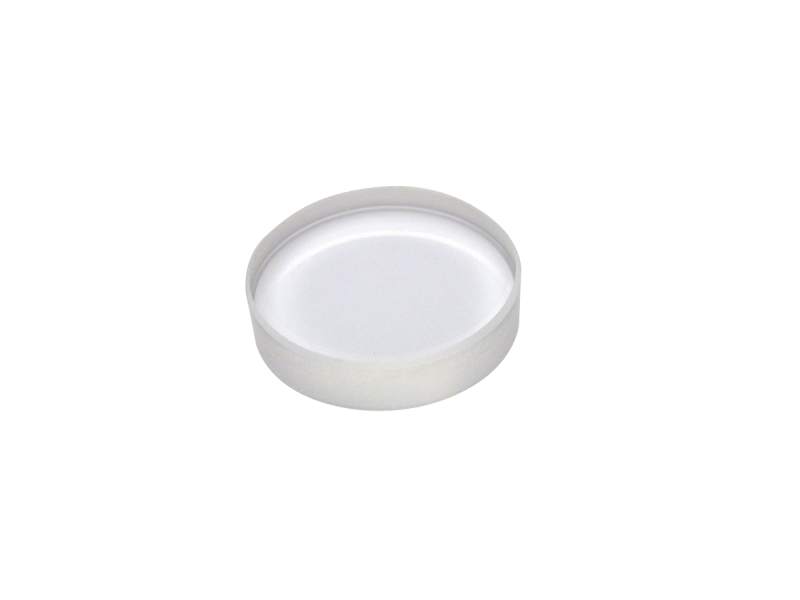

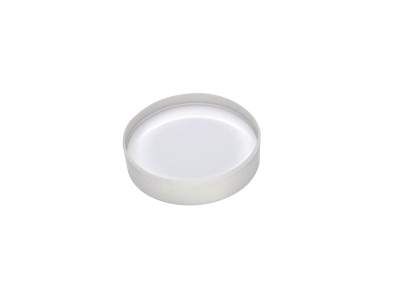

Optimized for Nd:YAG Laser Applications

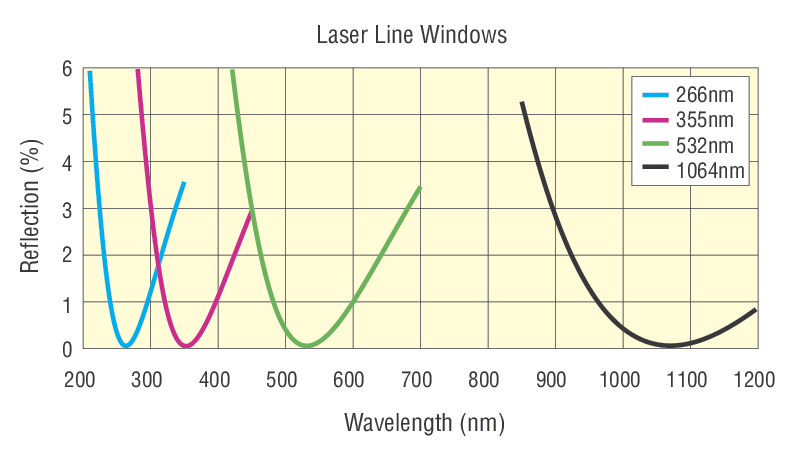

Each surface of our High Energy Parallel Windows is coated with a high efficiency, high damage threshold V-coating. Coatings are available to maximize transmission at 1064nm, 532nm, 355nm and 266nm, corresponding to the 1st, 2nd, 3rd, and 4th harmonics for Nd:YAG lasers.

High Precision Manufacturing

These high energy parallel windows are manufactured to the highest precision with flatness up to λ/10 for low distortion and < 5 arc second parallelism for exceptionally low beam deviation.

Low Scatter

Our high energy parallel windows are made with the finest quality excimer grade UV fused silica material for extremely low bulk scatter and autofluoresence. These optics boast a high quality surface of 10-5 scratch-dig for very low surface scatter.
