Overview

UV Fused Silica Windows feature low distortion, excellent parallelism, low bulk scattering and fine surface quality. This makes them perfectly suited for a wide variety of demanding applications, including multiphoton imaging systems and intracavity laser applications.

Extremely low bulk scatter and autofluorescence
Available in high flatness λ/20 or general purpose λ/10
<30 arc-second parallelism
Fine, low scatter surface up to 10-5 scratch-dig

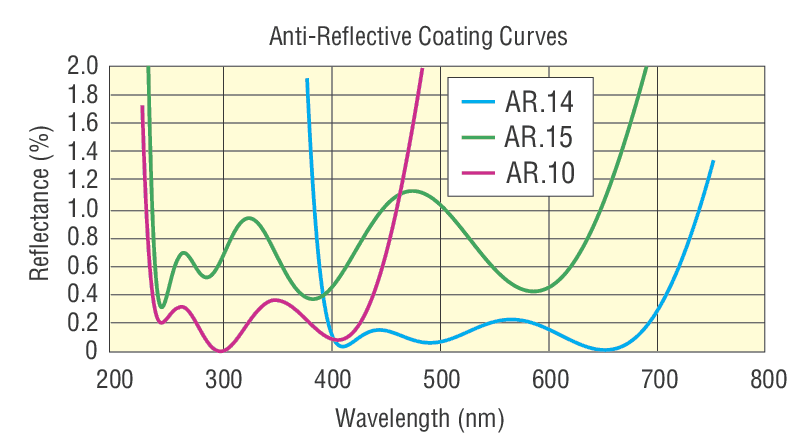

Broadband AR coatings for UV, visible or IR applications

See All Features

Products

Compare	Model	Compatibility	rankScore	Diameter	Antireflection Coating	Thickness	Surface Flatness	Surface Quality	Availability	Price	Brand
05QW40-30 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, Uncoated $139 Show	05QW40-30 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, Uncoated	UNIVERSAL	1.0	12.7 mm	Uncoated	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$139	Newport
05QW40-30AR.10 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 245-440 nm $172 Show	05QW40-30AR.10 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 245-440 nm	UNIVERSAL	1.0	12.7 mm	245-440 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$172	Newport
05QW40-30AR.14 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 430-700 nm $146 Show	05QW40-30AR.14 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 430-700 nm	UNIVERSAL	1.0	12.7 mm	430-700 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$146	Newport
05QW40-30AR.16 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 650-1000nm $162 Show	05QW40-30AR.16 Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 650-1000nm	UNIVERSAL	1.0	12.7 mm	650-1000 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$162	Newport
05QW40-30AR.18 Parallel Optical Window, UV Fused Silica, 12.7mm, ≤λ/20, 1000-1550nm $162 Show	05QW40-30AR.18 Parallel Optical Window, UV Fused Silica, 12.7mm, ≤λ/20, 1000-1550nm	UNIVERSAL	1.0	12.7 mm	1000-1550 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$162	Newport
10QW40-30 Optical Window, Parallel, UV Fused Silica, 25.4 mm, ≤λ/20, Uncoated $191 Show	10QW40-30 Optical Window, Parallel, UV Fused Silica, 25.4 mm, ≤λ/20, Uncoated	UNIVERSAL	1.0	25.4 mm	Uncoated	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$191	Newport
10QW40-30AR.10 Optical Window, Parallel, UVFS, 25.4 mm,≤λ/20, 245-440 nm $230 Show	10QW40-30AR.10 Optical Window, Parallel, UVFS, 25.4 mm,≤λ/20, 245-440 nm	UNIVERSAL	1.0	25.4 mm	245-440 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$230	Newport
10QW40-30AR.14 Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 430-700 nm $202 Show	10QW40-30AR.14 Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 430-700 nm	UNIVERSAL	1.0	25.4 mm	430-700 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$202	Newport
10QW40-30AR.16 Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 650-1000 nm $216 Show	10QW40-30AR.16 Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 650-1000 nm	UNIVERSAL	1.0	25.4 mm	650-1000 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$216	Newport
10QW40-30AR.18 Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 1000-1550 nm $216 Show	10QW40-30AR.18 Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 1000-1550 nm	UNIVERSAL	1.0	25.4 mm	1000-1550 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$216	Newport
20QW40-30 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, Uncoated $433 Show	20QW40-30 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, Uncoated	UNIVERSAL	1.0	50.8 mm	Uncoated	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$433	Newport
20QW40-30AR.10 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 245-440 nm $495 Show	20QW40-30AR.10 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 245-440 nm	UNIVERSAL	1.0	50.8 mm	245-440 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$495	Newport
20QW40-30AR.14 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 430-700 nm $450 Show	20QW40-30AR.14 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 430-700 nm	UNIVERSAL	1.0	50.8 mm	430-700 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$450	Newport
20QW40-30AR.16 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 650-1000 nm $473 Show	20QW40-30AR.16 Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 650-1000 nm	UNIVERSAL	1.0	50.8 mm	650-1000 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$473	Newport
20QW40-30AR.18 Parallel Optical Window, UV Fused Silica, 50.8mm, λ/20, 1000-1550 nm $473 Show	20QW40-30AR.18 Parallel Optical Window, UV Fused Silica, 50.8mm, λ/20, 1000-1550 nm	UNIVERSAL	1.0	50.8 mm	1000-1550 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	Show	$473	Newport
FSW10 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, Uncoated $118 Show	FSW10 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	5.0 mm	Uncoated	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$118	Newport
FSW10AR.10 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 250-450 nm $132 Show	FSW10AR.10 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	5.0 mm	250-450 nm	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$132	Newport
FSW10AR.14 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 425-675 nm $132 Show	FSW10AR.14 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	5.0 mm	425-675 nm	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$132	Newport
FSW10AR.15 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 250-700 nm $132 Show	FSW10AR.15 Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	5.0 mm	250-700 nm	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$132	Newport
FSW11 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, Uncoated $105 Show	FSW11 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	10.0 mm	Uncoated	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$105	Newport
FSW11AR.10 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 250-450 nm $124 Show	FSW11AR.10 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	10.0 mm	250-450 nm	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$124	Newport
FSW11AR.14 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 425-675 nm $124 Show	FSW11AR.14 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	10.0 mm	425-675 nm	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$124	Newport
FSW11AR.15 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 250-700 nm $124 Show	FSW11AR.15 Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	10.0 mm	250-700 nm	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$124	Newport
FSW12 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, Uncoated $106 Show	FSW12 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, Uncoated	UNIVERSAL	1.0	12.5 mm	Uncoated	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$106	Newport
FSW12AR.10 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-450 nm $125 Show	FSW12AR.10 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	12.5 mm	250-450 nm	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$125	Newport
FSW12AR.14 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 425-675 nm $125 Show	FSW12AR.14 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	12.5 mm	425-675 nm	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$125	Newport
FSW12AR.15 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-700 nm $125 Show	FSW12AR.15 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	12.5 mm	250-700 nm	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$125	Newport
FSW13 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, Uncoated $121 Show	FSW13 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	15.0 mm	Uncoated	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$121	Newport
FSW13AR.10 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 250-450 nm $137 Show	FSW13AR.10 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	15.0 mm	250-450 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$137	Newport
FSW13AR.14 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 425-675 nm $137 Show	FSW13AR.14 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	15.0 mm	425-675 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$137	Newport
FSW13AR.15 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 250-700 nm $137 Show	FSW13AR.15 Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	15.0 mm	250-700 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$137	Newport
FSW14 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, Uncoated $126 Show	FSW14 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	20.0 mm	Uncoated	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$126	Newport
FSW14AR.10 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 250-450 nm $147 Show	FSW14AR.10 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	20.0 mm	250-450 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$147	Newport
FSW14AR.14 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 425-675 nm $147 Show	FSW14AR.14 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	20.0 mm	425-675 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$147	Newport
FSW14AR.15 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 250-700 nm $147 Show	FSW14AR.15 Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	20.0 mm	250-700 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$147	Newport
FSW15 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, Uncoated $134 Show	FSW15 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	25.0 mm	Uncoated	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$134	Newport
FSW15AR.10 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 250-450 nm $152 Show	FSW15AR.10 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	25.0 mm	250-450 nm	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$152	Newport
FSW15AR.14 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 425-675 nm $152 Show	FSW15AR.14 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	25.0 mm	425-675 nm	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$152	Newport
FSW15AR.15 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 250-700 nm $152 Show	FSW15AR.15 Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	25.0 mm	250-700 nm	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$152	Newport
FSW16 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, Uncoated $158 Show	FSW16 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	30.0 mm	Uncoated	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$158	Newport
FSW16AR.10 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 250-450 nm $182 Show	FSW16AR.10 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	30.0 mm	250-450 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$182	Newport
FSW16AR.14 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 425-675 nm $182 Show	FSW16AR.14 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	30.0 mm	425-675 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$182	Newport
FSW16AR.15 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 250-700 nm $182 Show	FSW16AR.15 Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	30.0 mm	250-700 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$182	Newport
FSW17 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, Uncoated $183 Show	FSW17 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	40.0 mm	Uncoated	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$183	Newport
FSW17AR.10 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 250-450 nm $204 Show	FSW17AR.10 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	40.0 mm	250-450 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$204	Newport
FSW17AR.14 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 425-675 nm $204 Show	FSW17AR.14 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	40.0 mm	425-675 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$204	Newport
FSW17AR.15 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 250-700 nm $204 Show	FSW17AR.15 Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	40.0 mm	250-700 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$204	Newport
FSW18 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, Uncoated $229 Show	FSW18 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, Uncoated	UNIVERSAL	1.0	50.0 mm	Uncoated	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$229	Newport
FSW18AR.10 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 250-450 nm $248 Show	FSW18AR.10 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 250-450 nm	UNIVERSAL	1.0	50.0 mm	250-450 nm	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$248	Newport
FSW18AR.14 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 425-675 nm $248 Show	FSW18AR.14 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 425-675 nm	UNIVERSAL	1.0	50.0 mm	425-675 nm	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$248	Newport
FSW18AR.15 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 250-700 nm $248 Show	FSW18AR.15 Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 250-700 nm	UNIVERSAL	1.0	50.0 mm	250-700 nm	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$248	Newport
FSW19AR.10 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-425 nm, 2 mm $186 Show	FSW19AR.10 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-425 nm, 2 mm	UNIVERSAL	1.0	12.5 mm	250-425 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$186	Newport
FSW19AR.14 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 425-675 nm, 2 mm $177 Show	FSW19AR.14 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 425-675 nm, 2 mm	UNIVERSAL	1.0	12.5 mm	425-675 nm	2.00 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$177	Newport
FSW19AR.15 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-700 nm, 2 mm $158 Show	FSW19AR.15 Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-700 nm, 2 mm	UNIVERSAL	1.0	12.5 mm	250-700 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	Show	$158	Newport

Show All

Features

UV Fused Silica for UV, Laserline & Broadband Applications

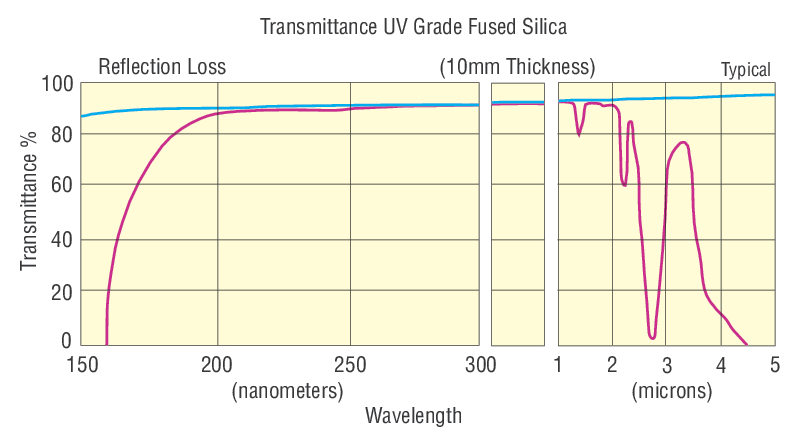

UV Grade Fused Silica is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities, and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage. Compared with other optical glasses (like N-BK7), UV Fused Silica has very low autofluoresence and scattering.
