Compare Model Drawings, CAD & Specs Availability Price
BR-U
Mounting Bridle, U Series to Optical Table
$16.90
BR-U Mounting Bridle, U Series to Optical Table $16.90
BR3
Mounting Bridle, UTR46 to MVN50 or UMR5, 0.26 in. Height, Qty 4
$51
BR3 Mounting Bridle, UTR46 to MVN50 or UMR5, 0.26 in. Height, Qty 4 $51
BR32
Mounting Bridle, UTR46S to MVN50 or UMR5, 0.18 in. Height, Qty 4
$51
BR32 Mounting Bridle, UTR46S to MVN50 or UMR5, 0.18 in. Height, Qty 4 $51
BR4
Mounting Bridle, UTR80 to MVN80, TGN80 or UMR8, 0.30 in. Height, Qty 4
$51
BR4 Mounting Bridle, UTR80 to MVN80, TGN80 or UMR8, 0.30 in. Height, Qty 4 $51
BR42
Mounting Bridle, UTR80S to MVN80, TGN80 or UMR8, 0.22 in. Height, Qty 4
$56
BR42 Mounting Bridle, UTR80S to MVN80, TGN80 or UMR8, 0.22 in. Height, Qty 4 $56
BR5
Mounting Bridle, UTR120 to MVN120, TGN120 or UMR12, Qty 4
$51
BR5 Mounting Bridle, UTR120 to MVN120, TGN120 or UMR12, Qty 4 $51
BR6
Mounting Bridle, UTR160 to TGN160, Qty 4
$56
BR6 Mounting Bridle, UTR160 to TGN160, Qty 4 $56
BR62
Mounting Bridle, SL or VGM Mounts to Imperial Table, 4 in, Qty 4
$56
BR62 Mounting Bridle, SL or VGM Mounts to Imperial Table, 4 in, Qty 4 $56
M-BR3
Mounting Bridle, M-UTR46 to M-MVN50 or M-UMR5, 6.5mm Height, Qty 4
$51
M-BR3 Mounting Bridle, M-UTR46 to M-MVN50 or M-UMR5, 6.5mm Height, Qty 4 $51
M-BR32
Mounting Bridle, M-UTR46S to M-MVN50 or M-UMR5, 4.5mm Height, Qty 4
$51
M-BR32 Mounting Bridle, M-UTR46S to M-MVN50 or M-UMR5, 4.5mm Height, Qty 4 $51
M-BR4
Mounting Bridle, M-UTR80 to M-MVN80, M-TGN80 or M-UMR8, 7.6 mm Height, Qty 4
$51
M-BR4 Mounting Bridle, M-UTR80 to M-MVN80, M-TGN80 or M-UMR8, 7.6 mm Height, Qty 4 $51
M-BR41
Mounting Bridle, M-URM80 to M-UTM Without Interface Plate, Qty 4
$75
M-BR41 Mounting Bridle, M-URM80 to M-UTM Without Interface Plate, Qty 4 $75
M-BR42
Mounting Bridle,M-UTR80S to M-MVN80, M-TGN80 or M-UMR8, 5.6 mm Height, Qty 4
$56
M-BR42 Mounting Bridle,M-UTR80S to M-MVN80, M-TGN80 or M-UMR8, 5.6 mm Height, Qty 4 $56
M-BR5
Mounting Bridle, M-UTR120 to M-MVN120, M-TGN120 or M-UMR12, Qty 4
$51
M-BR5 Mounting Bridle, M-UTR120 to M-MVN120, M-TGN120 or M-UMR12, Qty 4 $51
M-BR6
Mounting Bridle, M-UTR160 to M-TGN160, Qty 4
$56
M-BR6 Mounting Bridle, M-UTR160 to M-TGN160, Qty 4 $56
M-BR62
Mounting Bridle, SL or VGM Mounts to Metric Table, 100 mm, Qty 4
$56
M-BR62 Mounting Bridle, SL or VGM Mounts to Metric Table, 100 mm, Qty 4 $56
M-BR68
Mounting Bridle, VGM With No Base Plate to Optical Table, Qty 4
$54
M-BR68 Mounting Bridle, VGM With No Base Plate to Optical Table, Qty 4 $54

Features

Standard Mounting Bridles

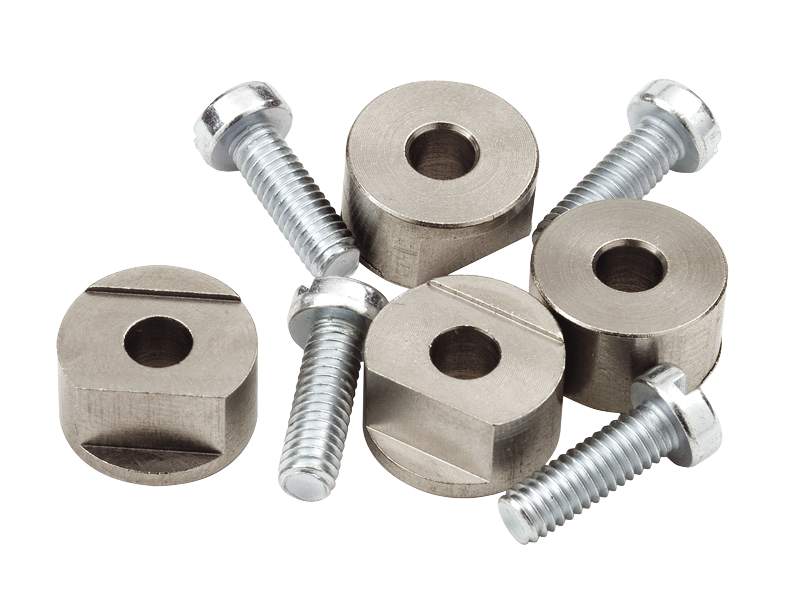

BR Series Mounting Bridles secure round and notched-edge base components such as UTR, URM, and PO Series stages or SL, SK, and VGM Series mirror mounts to UMR, MVN, TGN Series stages and mounting surfaces. Precision machined tabs on these steel bridles insert into a groove at the base of the component with a centered clearance hole for locking securely with a screw. BR bridles are available with seven different notch heights and are sold in sets of four.

Slotted Mounting Bridles

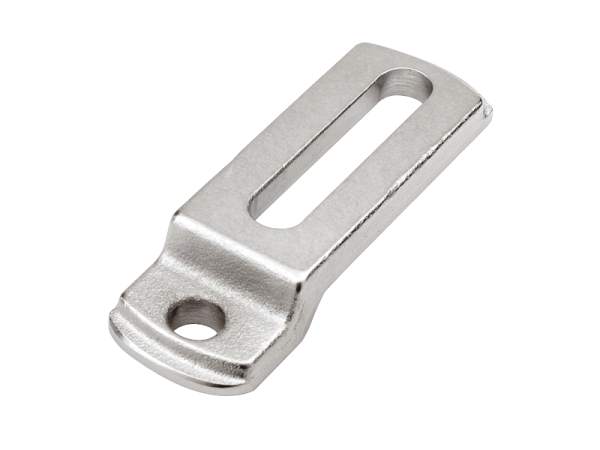

The BR-U Mounting Bridle is designed for mounting components directly to tables and breadboards when the base plate cannot be used. BR-U bridles feature a slotted design for either 1/4-20 or M6 screws and are sold individually.

BR-U bridles allow mounting components directly to a table surface.

Secure a Rotation Stage to a Linear Stage

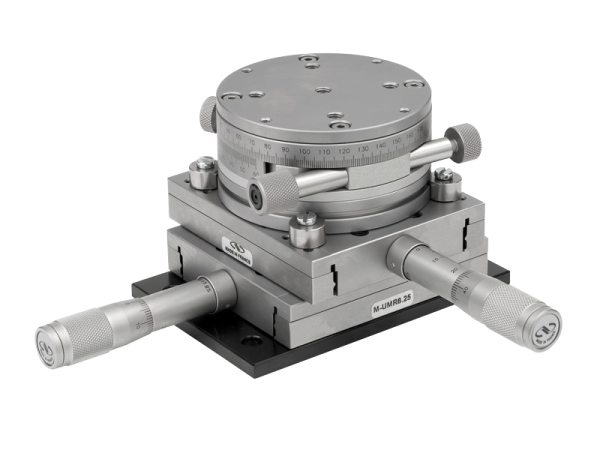

BR Series mounting bridles are great for securing rotation stages like the UTR Series to linear stages like the UMR Series.
