Compare Model Drawings, CAD & Specs Availability Price
PNH-5
Pinhole, Platinum Iridium, 5 µm, RMS Thread
$318
PNH-5 Pinhole, Platinum Iridium, 5 µm, RMS Thread $318
PNH-10
Pinhole, Platinum Iridium, 10 µm, RMS Thread
$317
PNH-10 Pinhole, Platinum Iridium, 10 µm, RMS Thread $317
PNH-15
Pinhole, Platinum Iridium, 15 µm, RMS Thread
$258
PNH-15 Pinhole, Platinum Iridium, 15 µm, RMS Thread $258
PNH-20
Pinhole, Platinum Iridium, 20 µm, RMS Thread
$232
PNH-20 Pinhole, Platinum Iridium, 20 µm, RMS Thread $232
PNH-30
Pinhole, Platinum Iridium, 30 µm, RMS Thread
$190
PNH-30 Pinhole, Platinum Iridium, 30 µm, RMS Thread $190
PNH-50
Pinhole, Platinum Iridium, 50 µm, RMS Thread
$190
PNH-50 Pinhole, Platinum Iridium, 50 µm, RMS Thread $190
PNH-80
Pinhole, Platinum Iridium, 80 µm, RMS Thread
$165
PNH-80 Pinhole, Platinum Iridium, 80 µm, RMS Thread $165
PNH-100
Pinhole, Platinum Iridium, 100 µm, RMS Thread
$167
PNH-100 Pinhole, Platinum Iridium, 100 µm, RMS Thread $167
PNH-150
Pinhole, Platinum Iridium, 150 µm, RMS Thread
$130
PNH-150 Pinhole, Platinum Iridium, 150 µm, RMS Thread $130
PNH-200
Pinhole, Platinum Iridium, 200 µm, RMS Thread
$130
PNH-200 Pinhole, Platinum Iridium, 200 µm, RMS Thread $130

Specifications

  • Type
    Mounted Pinhole
  • Thread Type
    RMS
  • Material
    Platinum Iridium
  • Diameter
    2.0 mm
  • Diameter Tolerance
    +0/-0.02 mm
  • Thickness
    0.6 mm

Features

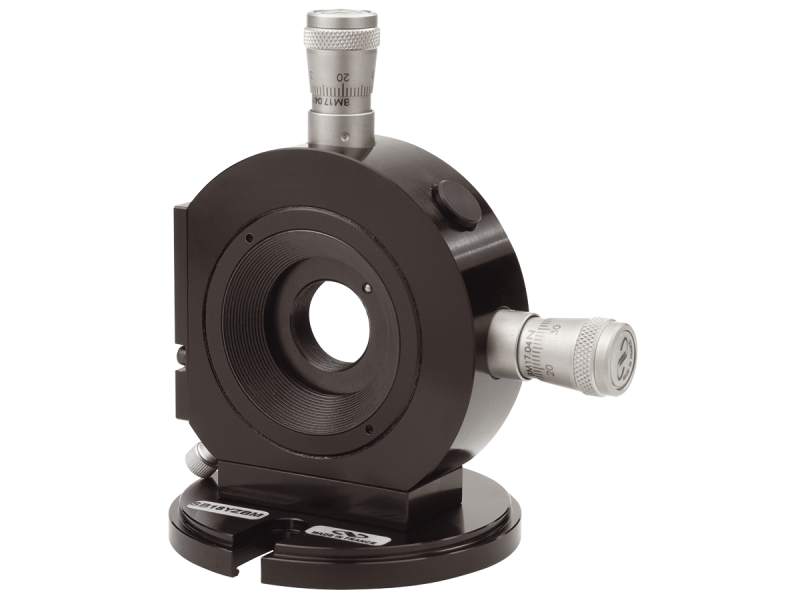

Compatible with SB18YZ Pinhole Positioners

These Platinum Iridium pinholes feature a 20.25 RMS male threaded housing for use with our SB18YZ Series objective and pinhole positioners.
