XY Optic Positioner, Precision, BHC Lockable Adjustment Screws

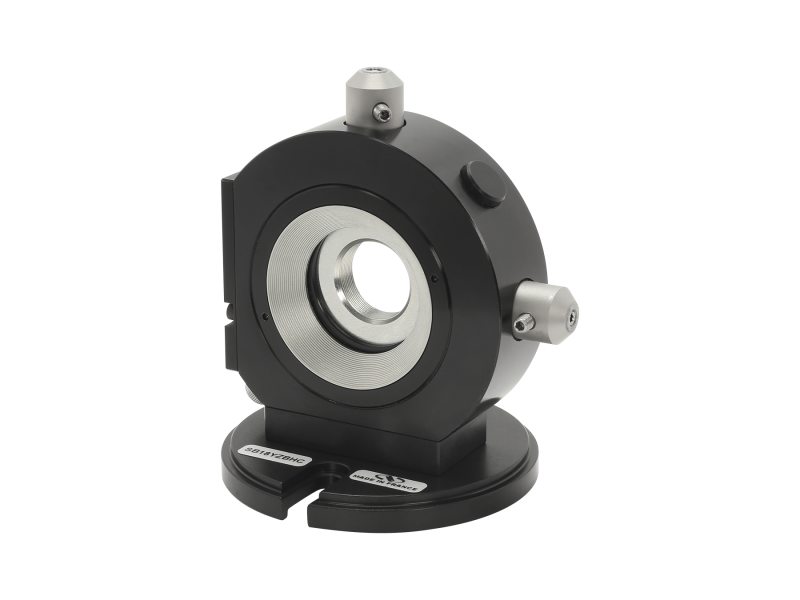

The SB18YZBHC Optic Mount precisely positions any optical element in a plane perpendicular to the optical axis, and is a very popular choice for positioning in spatial filters. The mount accepts any M20.25 RMS-threaded pinhole, microscope objective or lens. XY travel is ±2 mm. BHC Lockable Adjustment Screws fix the optic in position to prevent inadvertent misadjustment. Mounted on a CN26 carrier, SB18YZ mounts have a 40 mm axis height for compatibility with the X26 component family. For table mounting, SB18YZ mounts include a base plate similar to those found on our SL Series mounts.
