| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
05LP-VIS-B Linear Polarizer, Polymer Film, 700:1, 430-670 nm, 12.7 mm |
|
$591 |
|
|||
|
05LP-NIR Linear Polarizer, Polymer Film, 1000:1, 1100-1750 nm, 12.7 mm |
|
$741 |
|
|||
|
10LP-UV Linear Polarizer, Polymer Film, 150:1, 310-400 nm, 25.4 mm |
|
$1,194 |
|
|||
|
10LP-VIS-B Linear Polarizer, Polymer Film, 700:1, 430-670 nm, 25.4 mm |
|
$1,059 |
|
|||
|
10LP-NIR Linear Polarizer, Polymer Film, 1000:1, 1100-1750 nm, 25.4 mm |
|
$1,406 |
|
|||
|
20LP-UV Linear Polarizer, Polymer Film, 150:1, 310-400 nm, 50.8 mm | $1,767 |
|
||||
|
20LP-VIS-B Linear Polarizer, Polymer Film, 700:1, 430-670 nm, 50.8 mm |
|
$1,425 |
|
|||
|
20LP-NIR Linear Polarizer, Polymer Film, 1000:1, 1100-1750 nm, 50.8 mm |
|
$1,908 |
|
The polarizer assembly is mounted in a black anodized aluminum housing for protection, with the transmission axis clearly marked. The result is linear polarizers with high transmission and low wavefront distortion. The standard 12.7, 25.4, and 50.8 mm outer diameters are convenient for mounting into Newport rotary mounts.

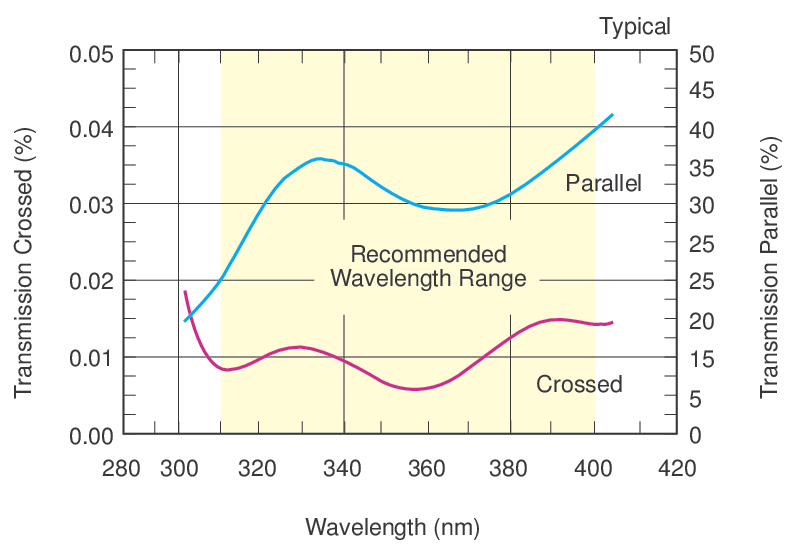

Our ultraviolet polarizers are recommended for 310-400 nm wavelength applications, and use a UV Fused Silica substrate.

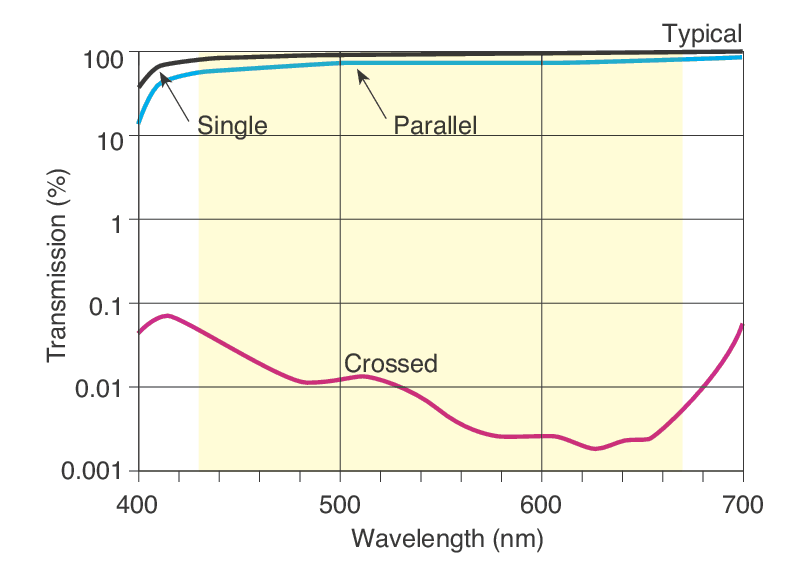

Our visible polarizers are recommended for 430-670 nm wavelength applications, and use a Grade A N-BK7 substrate.

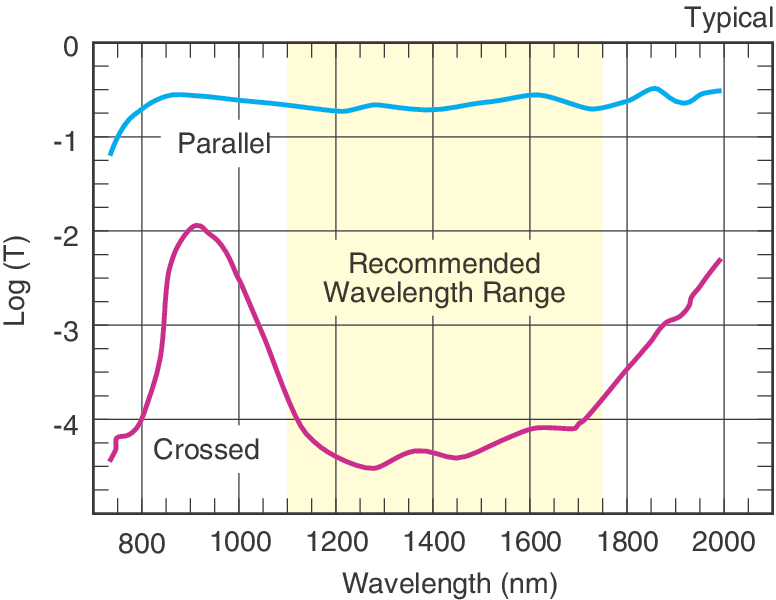

Our near infrared polarizers are recommended for 1100-1750 nm wavelength applications, and use a Grade A N-BK7 substrate.

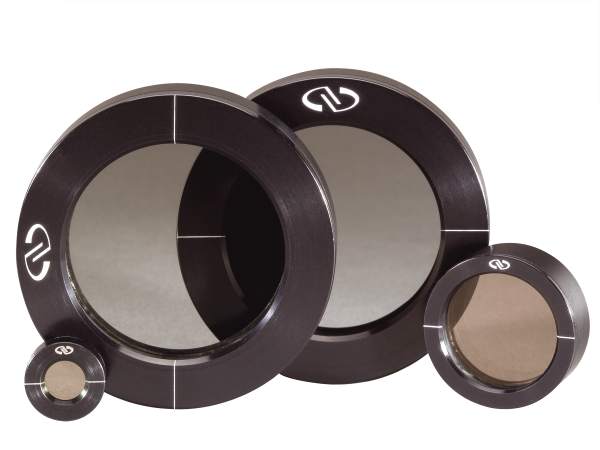

Our Precision Linear Polarizers consist of dichroic sheet polymer polarizer material that is laminated between high quality glass substrates. In the visible wavelength range, these precision optics offer peak-to-valley transmitted wavefront distortion of <λ/5. They feature high extinction ratios, surface quality of 40-20 scratch-dig and offer wide angular acceptance. Available mounted, each Precision Linear Polarizer includes a marked transmission axis on the front of the part, for ease of use. Wavelengths from 320 nm to 2000 nm are covered by a wide variety of polarizer materials. Visible and NIR polarizers include a BBAR coating, with AR coatings on the UV polarizers.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | ( |
|||||
| Retaining Thread | 1.063-20 | |||||
| Compatible Optic Diameter* | 25.4 mm 12.7 mm ( |
|||||
| Special Features | 1 in. Mirror Mounts Compatibility | OpticsCage+â„¢ Compatibility | Tip&Tilt Adjustments | Fine Adjustments | ||
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | ( |
( |
( ( |
|||
| Retaining Thread | 0.546-32 | 1.040-32 | 1.035-40 | 1.063-20 | 2.063-20 1.063-20 |
– |
| Compatible Optic Diameter* | 12.7 mm | 25.4 mm | 25.4 mm 12.7 mm ( |
50.8 mm 25.4 mm 12.7 mm ( |
50.8 mm ( 38.1 mm ( 25.4 mm ( 12.7 mm ( 6.35 mm ( |
|
| Special Features | Compact | Stackable | A-Lineâ„¢ Compatibility | Fine Adjustments | Quick Exchange | |
 |
 |
 |
 |
|
|---|---|---|---|---|
| Models | ( |
( ( |
||
| Retaining Thread | 1.040-32 | 1.063-20 | 1.563-20 | |
| Compatible Optic Diameters* | 25.4 mm | 25.4 mm 12.7 mm |
||
*The adapter in parentheses is required for the optic size before it.
