The LPGF and LPNIR series linear polarizers are not mounted in a housing for a lower cost option. They are constructed by laminating a polymer polarizing film between two high-precision glass windows. They are available in 400-700 nm, 750-850 nm and 1000-2000 nm wavelength ranges. These high contrast polarizers are ideal for a wide range of applications involving low power NIR lasers, LEDs, and other NIR sources.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
LPGF-1 VIS Linear Polarizer, 25.4 mm, 2.0 mm thick, 400-700 nm |
|
$56 |
|
|||
|
LPGF-2 VIS Linear Polarizer, 50.0 mm, 2.4 mm thick, 400-700 nm |
|
$80 |
|
|||
|
LPNIR-1 NIR Linear Polarizers, 25.0 mm Dia., 2.0 mm thick, 750-850 nm |
|
$440 |
|
|||
|
|
LPNIR-2 NIR Linear Polarizers, 25.0 mm Dia., 2.0 mm thick, 1000-2000 nm |
|
$513 |
|
Our unmounted linear polarizing glass filters LPGF-1 and LPGF-2 are recommended for 400-700 nm wavelength applications and are offered in 1 or 2 inch diameter substrates.

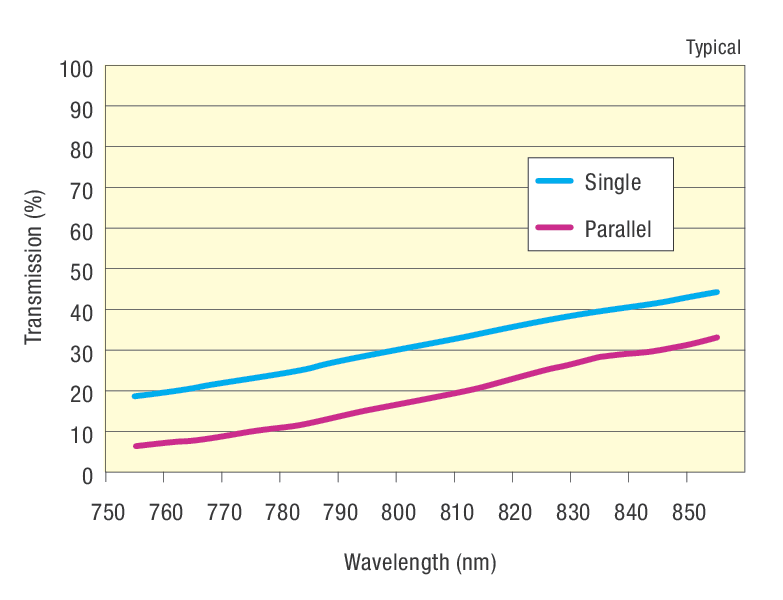

We offer unmounted NIR linear polarizer LPNIR-1 for 750-850 nm wavelength applications. The 25 mm diameter B270 Grade substrate has a narrowband multi-layer AR coating on both sides.

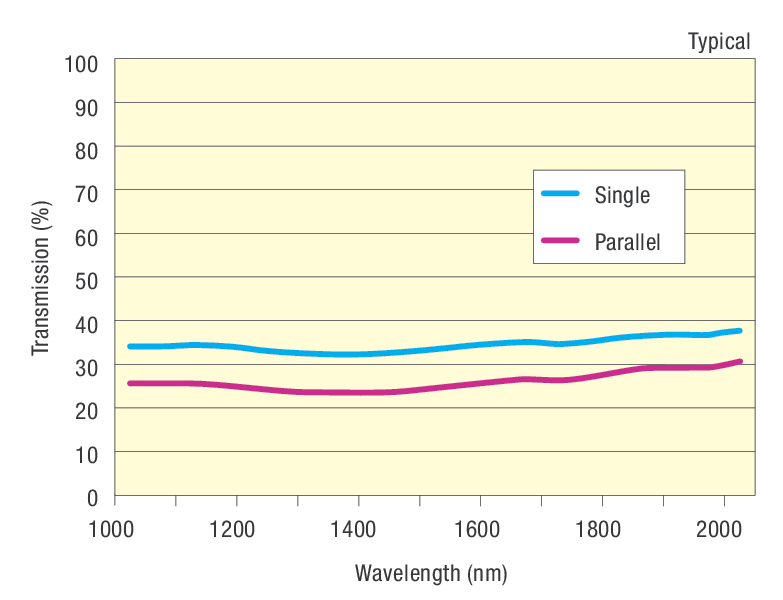

We offer unmounted NIR linear polarizer LPNIR-2 for 1000-2000 nm wavelength applications. Â
 |
 |
 |
 |
|
|---|---|---|---|---|
| Models | ( |
( ( |
||
| Retaining Thread | 1.040-32 | 1.063-20 | 1.563-20 | |
| Compatible Optic Diameters* | 25.4 mm | 25.4 mm 12.7 mm |
||
*The adapter in parentheses is required for the optic size before it.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | ( |
|||||
| Retaining Thread | 1.063-20 | |||||
| Compatible Optic Diameter* | 25.4 mm 12.7 mm ( |
|||||
| Special Features | 1 in. Mirror Mounts Compatibility | OpticsCage+â„¢ Compatibility | Tip&Tilt Adjustments | Fine Adjustments | ||
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | ( |
( |
( ( |
|||
| Retaining Thread | 0.546-32 | 1.040-32 | 1.035-40 | 1.063-20 | 2.063-20 1.063-20 |
– |
| Compatible Optic Diameter* | 12.7 mm | 25.4 mm | 25.4 mm 12.7 mm ( |
50.8 mm 25.4 mm 12.7 mm ( |
50.8 mm ( 38.1 mm ( 25.4 mm ( 12.7 mm ( 6.35 mm ( |
|
| Special Features | Compact | Stackable | A-Lineâ„¢ Compatibility | Fine Adjustments | Quick Exchange | |
