Opti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key, Vacuum

Model: 9872-K-V

$329

Show

Compare

Add to List

Product Series Overview

Opti-Claw Self-Centering Variable Size Lens Mounts

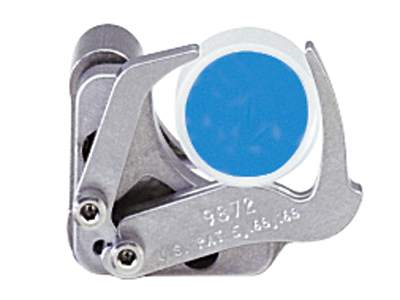

The 9872-K-V Vacuum Compatible Tiny Tilting Opti-Claw Mount is made from stainless steel for added rigidity and stability. It can hold any round object with a diameter from 0.06 inch (1.5 mm) to 0.63 inch (16 mm). 2-56 (M2) thru hole mounting.

Specifications

Technical Specs

Mechanism

Kinematic
Type

Variable Size Lens Mount
Optic Diameter

1.5-16 mm
Adjustment Screw Thread

80 TPI
Adjustments

Z θXθY
Optical Axis Height

15.9 mm
Sensitivity

14.3 arc sec
Angular Range

±4°

Material

Stainless Steel
Adjustment Type

Kinematic
Drive Type

Allen-Key, non-locking
Thread Type

2-56 (M2) CLR
Special Features

Vacuum Compatible
Vacuum Compatibility

10^-6 hPa

Mechanism

Kinematic
Type

Variable Size Lens Mount
Optic Diameter

1.5-16 mm
Adjustment Screw Thread

80 TPI
Adjustments

Z θXθY
Optical Axis Height

15.9 mm
Sensitivity

14.3 arc sec
Angular Range

±4°

Material

Stainless Steel
Adjustment Type

Kinematic
Drive Type

Allen-Key, non-locking
Thread Type

2-56 (M2) CLR
Special Features

Vacuum Compatible
Vacuum Compatibility

10^-6 hPa

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9872f-Drawing (120.6 kB, PDF)
20029872 (137.9 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
TR-M2M4-10 Thread Adaptor, M4 Male to M2 Female , pack of 10	UNIVERSAL	Show	$54
M-SK-A Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL	Show	$128
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	Show	$19.40
TR-E2E8-10 Thread Adaptor, 8-32 Male to 2-56 Female , pack of 10	UNIVERSAL	Show	$54

Similar

Description	Compatibility	Avail.	Price
9871-K Mirror Mount, Tiny, Corner, 0.5 in., 3 Allen-Keys, Retaining Plate	UNIVERSAL	Show	$165
9871-K-V Mirror Mount, Tiny, Corner, Retaining Plate, 0.5 in., 3 Allen, Vacuum	UNIVERSAL	Show	$258
9873-K-V Blank Plate Mount, Tiny, 3 Allen, Vacuum	UNIVERSAL	Show	$258

Compatible

Description	Compatibility	Avail.	Price
M-PS-1 Optical Pedestal, 25.4 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	Show	$28
M-UMR8.25 Linear Stage, Double-Row Ball Bearing, 25 mm Travel, M4 and M6	METRIC	Show	$434
M-PS-3 Optical Pedestal, 76.2 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	Show	$34
M-UMR5.16 Linear Stage, Double-Row Ball Bearing, 16 mm Travel, M3, M4 and M6	METRIC	Show	$336
M-PS-2 Optical Pedestal, 50.8 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	Show	$30
