| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
9832 Opti-Claw Mount, Fixed, 0.1 to 2.0 in. Diameter, 8-32 |
|
$142 |
|
|||
|
9832-M Opti-Claw Mount, Fixed, 0.1 to 2.0 in. Diameter, M4 |
|
$142 |
|
|||
|
9854 Opti-Claw Mount, Tilting.1 to 2.0 in., 3 Knob Adjustment |
|
$228 |
|
|||
|
9872-K Opti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key Adjustment |
|
$332 |
|
|||
|
|
9872-K-V Opti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key, Vacuum | $329 |
|
| Models |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Optic Diameter | 2.5-50.8 mm | 2.5-50.8 mm | 2.5-50.8 mm | 1.5-16 mm | 1.5-16 mm | |
| Edge Thickness (Te) | 3.00 to 8.87 mm | 3.00 to 8.87 mm | ||||
| Optical Axis Height | 50.8 mm | 50.8 mm | 50.8 mm | 15.9 mm | 15.9 mm | |
| Adjustments | Fixed | Fixed | Z θXθY | Z θXθY | Z θXθY | |
| Thread Type | 8-32 | M4 | 8-32 (M4) CLR | 2-56 (M2) CLR | 2-56 (M2) CLR | |
| Material | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Stainless Steel | Stainless Steel |

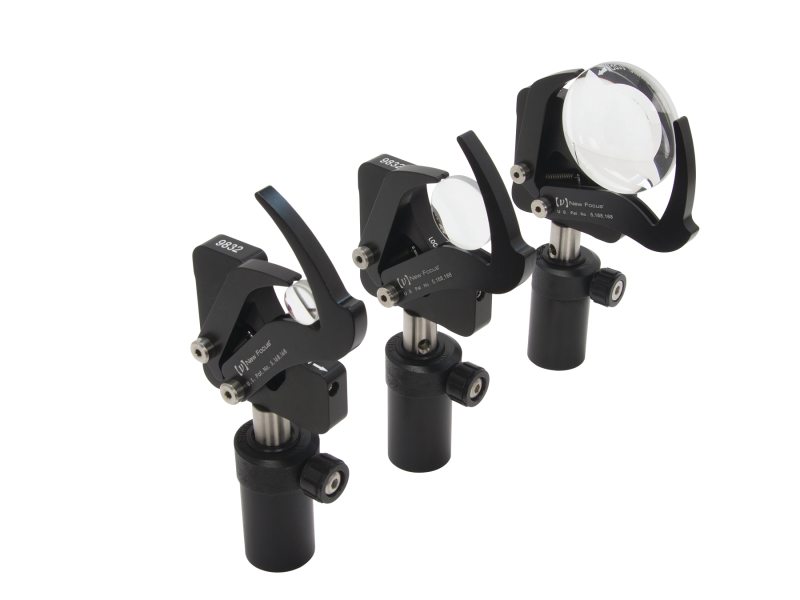

The self aligning movement of the of Opti-Claw's V-clamp keeps lenses on a common optical axis regardless of diameter.

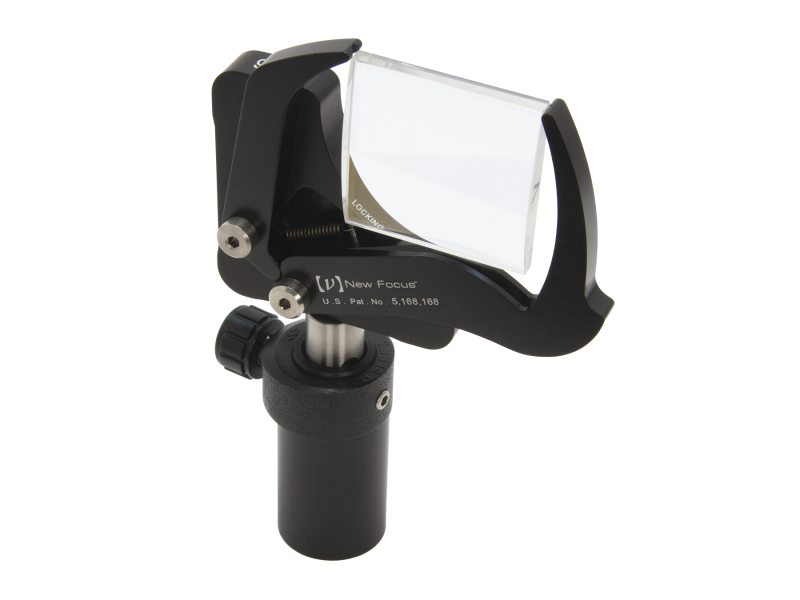

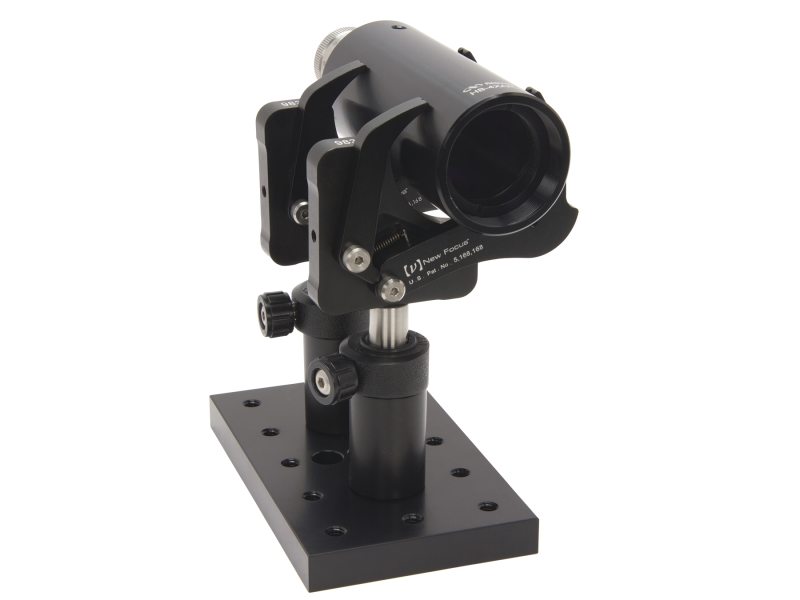

The 3-point optic mount on the Opti-Claw allows it to hold square or cylindrical optics in addition to round lenses.
Once in place, a setscrew locks the jaws solidly as a fixed-diameter mount by pushing them against the mounting plate.
