Opti-Claw Mount, Fixed, 0.1 to 2.0 in. Diameter, M4

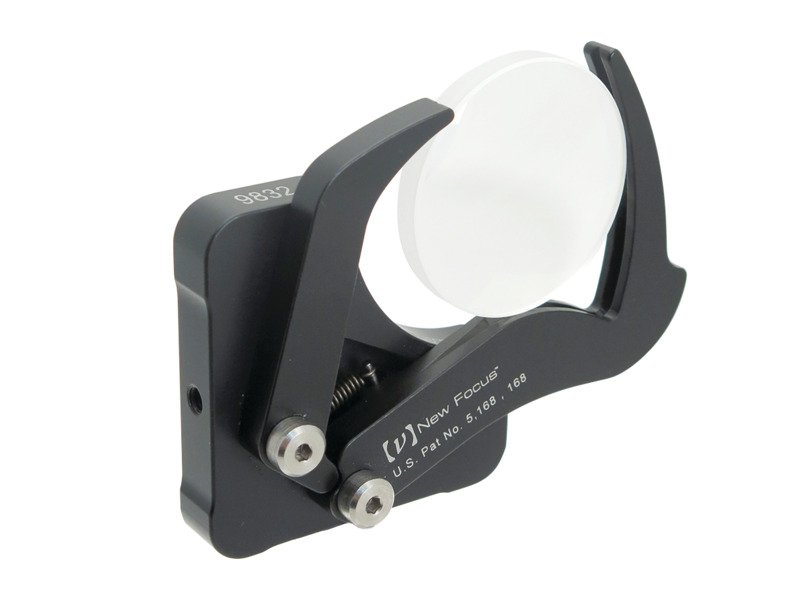

opti-claw self-centering lens mount shown with optical lens

Model: 9832-M

$142

Show

Compare

Add to List

Product Series Overview

Opti-Claw Self-Centering Variable Size Lens Mounts

The 9832-M Fixed Opti-Claw™ Mount is ideal for use with HeNe alignment lasers that come in cylindrical packages. It lets you remove and replace the laser quickly with the confidence that it will still be centered exactly where you want it.

Specifications

Technical Specs

Type

Variable Size Lens Mount
Optic Diameter

2.5-50.8 mm
Edge Thickness (T_e)

3.00 to 8.87 mm
Optical Axis Height

50.8 mm
Use

Self-centering Lens Mount

Adjustments

Fixed
Thread Type

M4
Material

Anodized Aluminum

Type

Variable Size Lens Mount
Optic Diameter

2.5-50.8 mm
Edge Thickness (T_e)

3.00 to 8.87 mm
Optical Axis Height

50.8 mm
Use

Self-centering Lens Mount

Adjustments

Fixed
Thread Type

M4
Material

Anodized Aluminum
