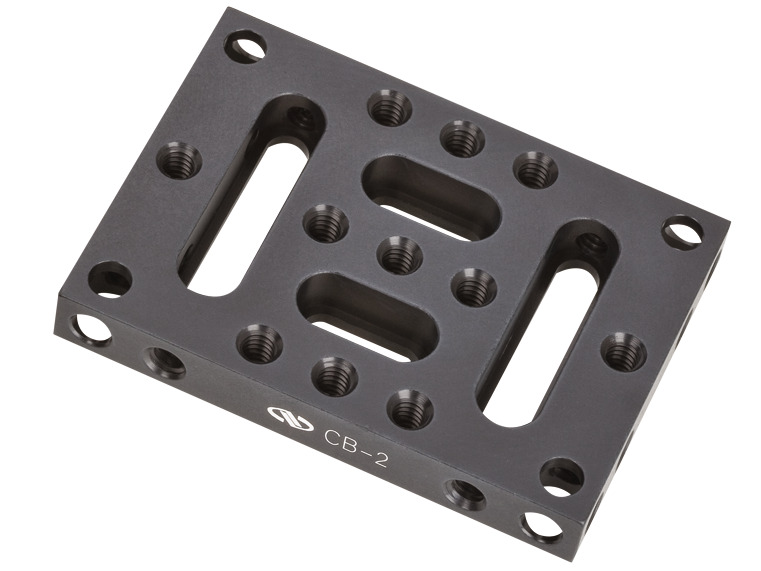

Construction Plates, 63.5 x 88.9 mm, 2 pieces, M6

Model: CB-2-M

$133

Show

Compare

Add to List

Product Series Overview

Modular Construction Bases

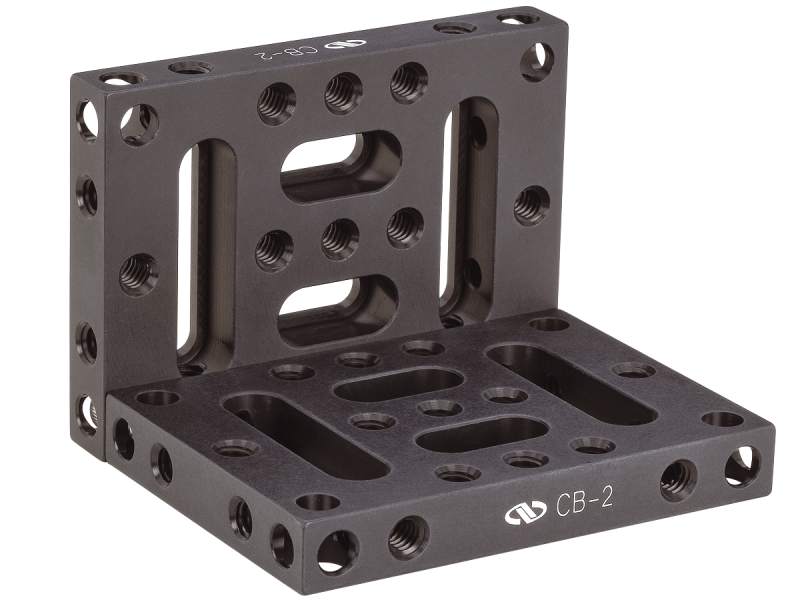

The CB-2-M Construction Base is a two-piece design that can be used as a bracket or a base. The base has plenty of tapped holes on all the surfaces as well as clearance holes and slots for M6 screws. Combine all three elements to construct rigid optical assemblies quickly and easily.

Specifications

Technical Specs

Type

Construction Base
Thread Type

M6

Type

Construction Base
Thread Type

M6

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CB-2 DWG-S (227 kB, PDF)

Other

CB-2-M RoHS Certificate (278.2 kB, PDF)
CB-2-M_RoHS2021.pdf (681.3 kB, PDF)
