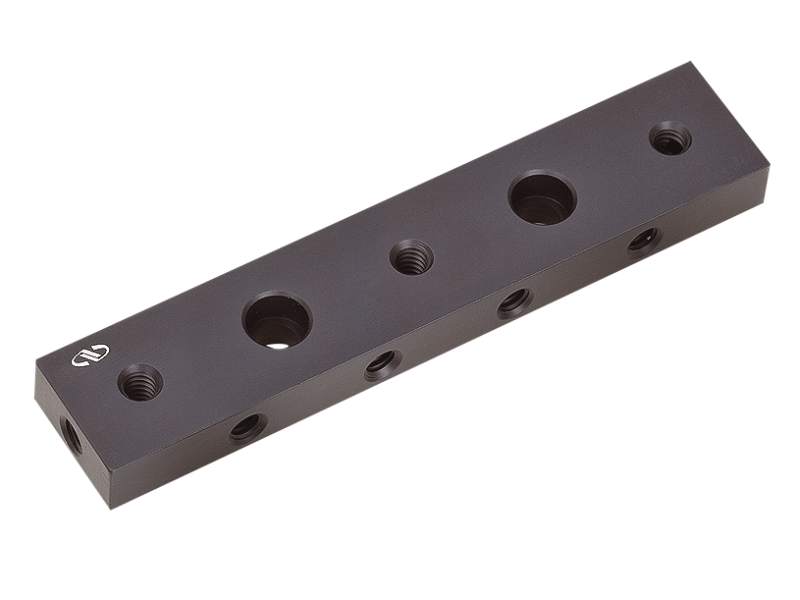

Construction Rail, 25.4 x 127 mm, M6

Model: CR-1-M

$28

Show

Compare

Add to List

Product Series Overview

Modular Construction Bases

The CR-1-M Construction Rail has tapped holes on all surfaces as well as counterbored clearance holes for M6 screws. The rail can be attached to a breadboard, a cube, another component, or another rail for modular versatility.

Specifications

Technical Specs

Type

Construction Base
Thread Type

M6

Type

Construction Base
Thread Type

M6

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CR-1 DWG-S (127.1 kB, PDF)

Other

CR-1-M RoHS Certificate (278.4 kB, PDF)
CR-1-M_RoHS2021.pdf (681.1 kB, PDF)
