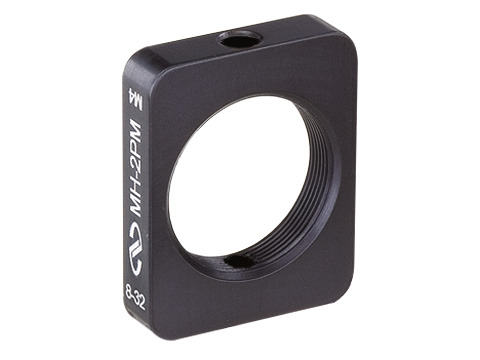

Microscope Objective Holder, RMS-Threaded, 0.625 in. Axis Height

Model: MH-2PM

$48

Show

Compare

Add to List

Product Series Overview

Microscope Objective Lens Mounts And Adapters

The MH-2PM Fixed Position Microscope Objective Mount accommodates microscope objectives with the standard 0.800-36 RMS thread such as our M or L Series. 8-32 and M4 threads provide for easy post mounting as well as compatibility with our MRL Series mini rails and MT Series compact linear stages.

Specifications

Technical Specs

Type

Objective Lens Mount
Optical Axis Height

15.9 mm
Adjustments

Fixed

Thread Type

8-32 and M4

Type

Objective Lens Mount
Optical Axis Height

15.9 mm
Adjustments

Fixed

Thread Type

8-32 and M4

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MH-2PM-249 (135.7 kB, PDF)

Other

MH-2PM RoHS Certificate (277.7 kB, PDF)
MH-2PM_RoHS2021.pdf (682.8 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SP-2 Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	Show	$6
SP-6 Optical Post, 6 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	Show	$8
SP-4 Optical Post, 4 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	Show	$7
VPH-2 Optical Post Holder, No Slip, 2.0 in. Height, 0.5 in. Posts, 1/4-20	IMPERIAL	Show	$17
SP-3 Optical Post, 3.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	Show	$6

Similar

Description	Compatibility	Avail.	Price
561-OBJ Objective Lens Mount, 561 Series	UNIVERSAL	Show	$166
UPA-OM Objective Lens Adapter, RMS Thread, 1 inch Mount	UNIVERSAL	Show	$48
MH-2P Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter	UNIVERSAL	Show	$48
LH-OBJ Microscope Objective Holder, RMS-Threaded, 1.0 in. Axis Height	UNIVERSAL	Show	$29
MLH-0.5 Rotation Lens Mount Adaptor, 0.50 in. Diameter to 0.75 in. Mount	UNIVERSAL	Show	$34

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-5X Microscope Objective Lens, 5x, 0.10 NA, 25.4 mm Focal Length	UNIVERSAL		Show	$131
		M-10X Microscope Objective Lens, 10x, 0.25 NA, 16.5 mm Focal Length	UNIVERSAL		Show	$159
