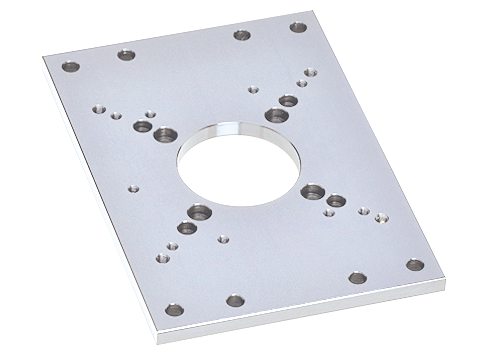

Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series

Model: M-PBN12

$147

Show

Compare

Add to List

Product Series Overview

Base Plates, PBN Series

The M-PBN12 Steel Base Plate is used to connect positioners with bottom-surface mounting holes to support structures that are inaccessible from below, such as breadboards and optical tables. An array of tapped and countersunk clearance holes provides compatibility with UMR12, MVN120, UTR120, and UTS Series Stages. The base plate is offered in metric only, but is compatible with both English and metric models. Please consult the dimensional drawings for exact specifications.

Specifications

Technical Specs

Type

Base Plate
Material

Steel

Use

UMR, UTR, MVN Stages

Type

Base Plate
Material

Steel

Use

UMR, UTR, MVN Stages

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M-PBN12.pdf (396.2 kB, PDF)
M-PBN12V6.pdf (405.3 kB, PDF)
