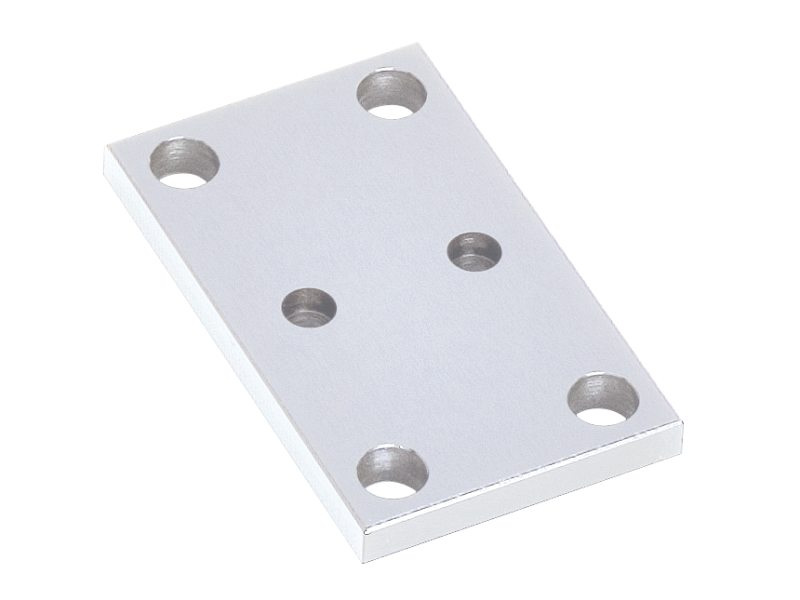

Base Plate, Used with UMR3.5 Linear Stage

Model: M-PBN3

$74

Show

Compare

Add to List

Product Series Overview

Base Plates, PBN Series

The M-PBN3 Steel Base Plate is used to connect positioners with bottom-surface mounting holes to support structures that are inaccessible from below, such as breadboards and optical tables. An array of tapped and countersunk clearance holes provides compatibility with UMR3.5 Series Stages. The base plate is offered in metric only, but is compatible with both English and metric models. Please consult the dimensional drawings for exact specifications.

Specifications

Technical Specs

Type

Base Plate
Material

Steel

Use

UMR, UTR, MVN Stages

Type

Base Plate
Material

Steel

Use

UMR, UTR, MVN Stages

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M-PBN3.pdf (372.2 kB, PDF)
M-PBN3V6.pdf (378.6 kB, PDF)
